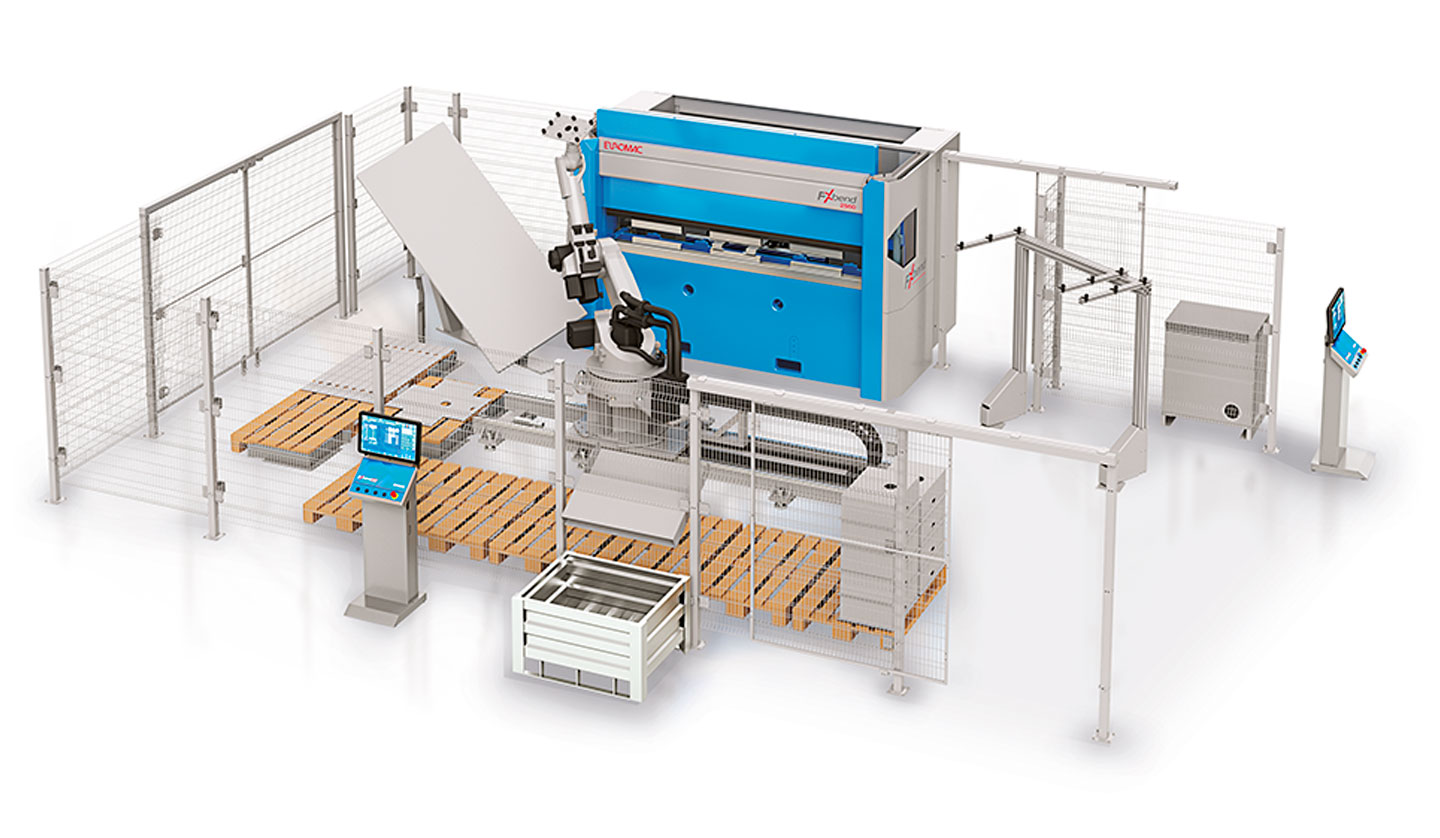

Fxbend Cell 2550 STANDARD

Large-scale robot, available in 2 unloading configurations suitable to your productive needs. Cell for medium and large sized pieces with a high production capacity.
Product Code: 39
Call for price
Empty



Cell 2550
Max.bending force (kN) 500
Bending length (mm) 2550
Inclination (mm) (Y1-Y2)

+ - 10
Opening (mm) (table to ram) 360
Y axes stroke (mm) 240
Y axes speed (mm/sec) 200

Max. bending speed

automatic mode (mm/sec)

 36
Max. bending speed manual mode (mm/sec) 10
Robot
Max. reach (mm) 2233
Max.playload with gripper (kg) 60
Number of axes 7
Pose repeability (mm)

+-0,06
FX Cell
UnLoading

Minimum parts dimension 1 (mm)

stack (mm)

 2500 x 1000

Minimum parts dimension (mm)
 50 x 100
Maximum stack height (mm) 300
Maximum thickness (mm) 5
Minimum thickness (mm)  0,7
 Maximum part weight (Kg)  30
 Unloading
Belt conveyor Max. parts dimension (mm) 1000 x 600 x h 300
Tape storage length (optional)  600 scarico + 600
Area for gravity unloading (mm)
 1200 x 800
Connected load (kWa) 6
Approx. weight (kg)
 8500
